Reinforced frame
Thickened uprights and a reinforced crossbeam form the main working structure.
Workshop equipment
Heavy-Duty Hydraulic Shop Press
A reinforced manual workshop press built around bottle-jack hydraulic operation, a rigid frame and an adjustable working position.
Reinforced frame
Bottle-jack operation
Adjustable work area
Core construction
Straightforward mechanical control

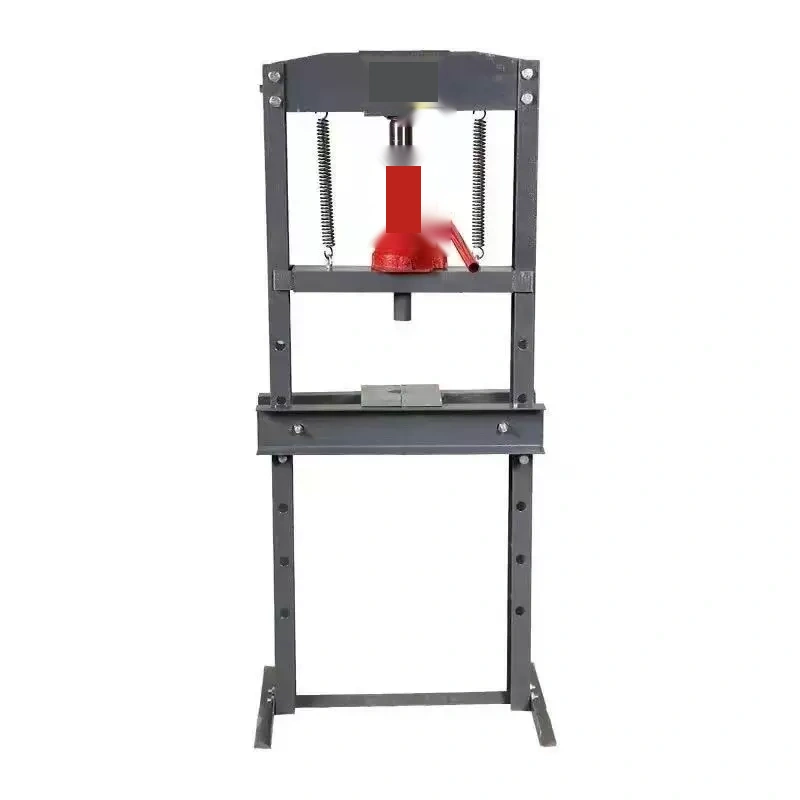

The supplied product materials show a thickened upright frame, reinforced crossbeam, return springs, metal pins and a manually operated bottle jack.
Manual hydraulic control
The bottle jack is operated with a pump handle and a release valve for raising and lowering.
Adjustable working position
Metal pins and perforated uprights allow the support position to be changed for different work heights.

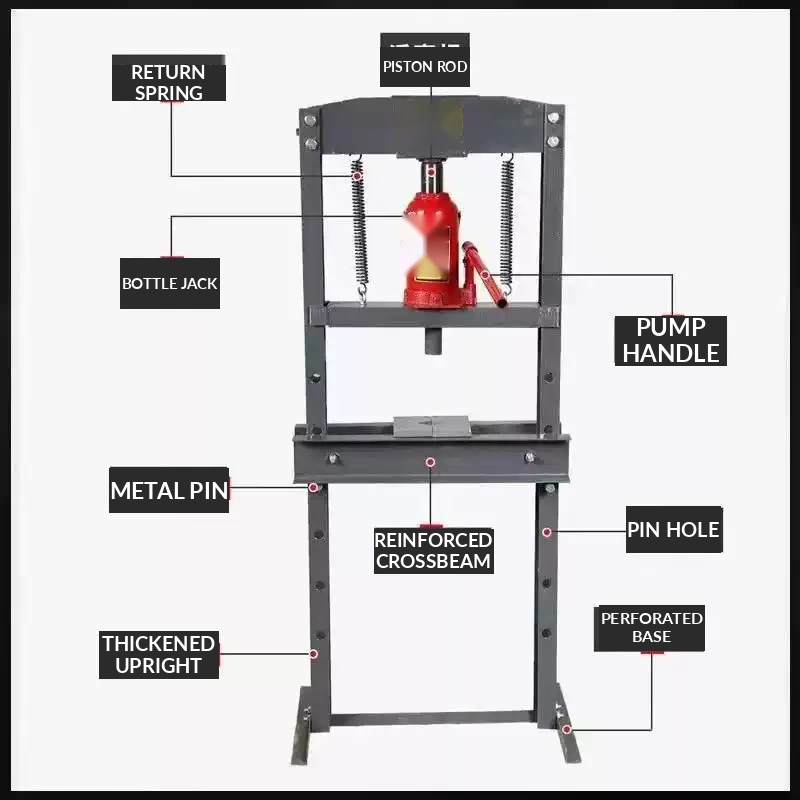

Component layout
Key parts are clearly accessible
The component diagram supplied with the product identifies the main structural and operating parts.
Hydraulic unitBottle jack + pump handle
Return mechanismTwin return springs
Frame supportReinforced crossbeam
Height adjustmentMetal pins + pin holes

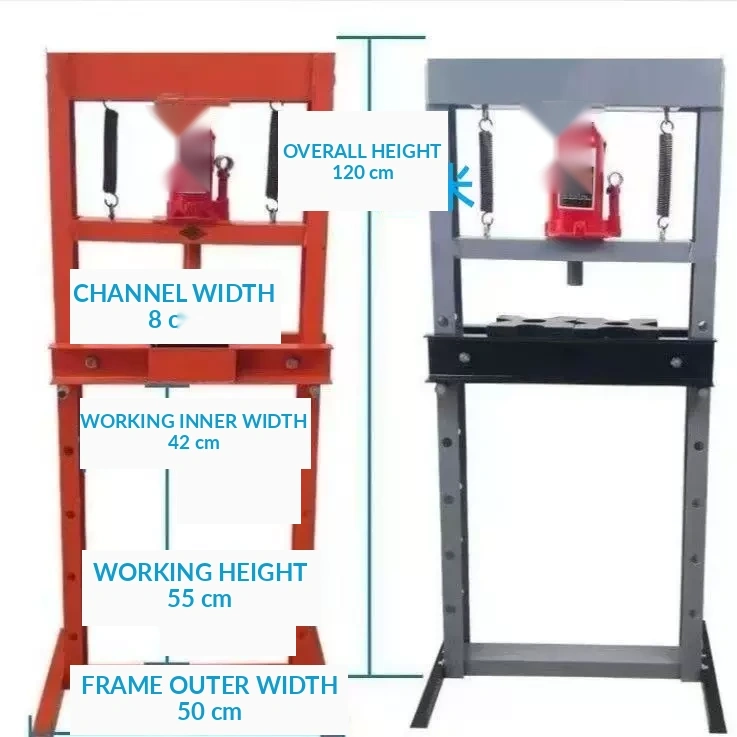

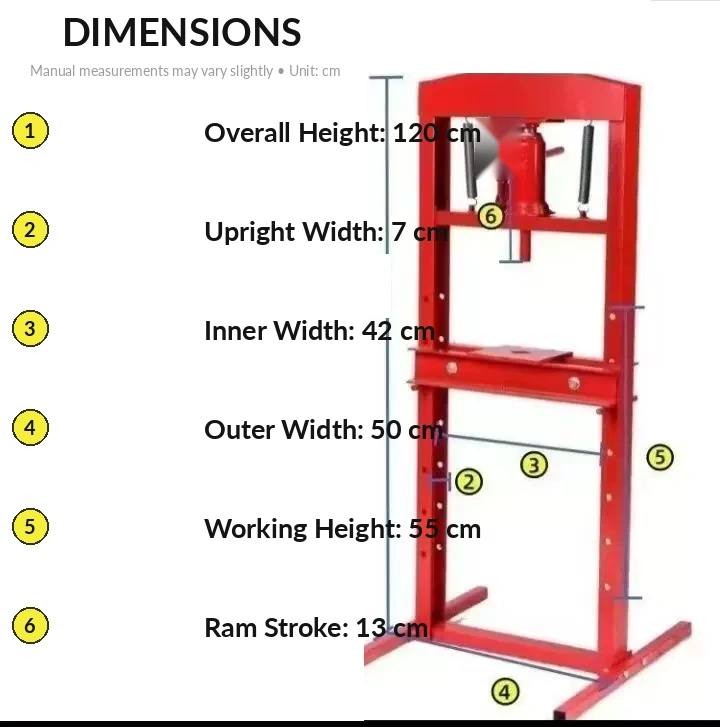

Measured size
Workshop-friendly frame dimensions
These values reproduce the dimensions shown in the supplied dimension graphic. Manual measurement may vary slightly.
Overall height120 cm
Working inner width42 cm
Frame outer width50 cm
Working height55 cm
Ram stroke13 cm

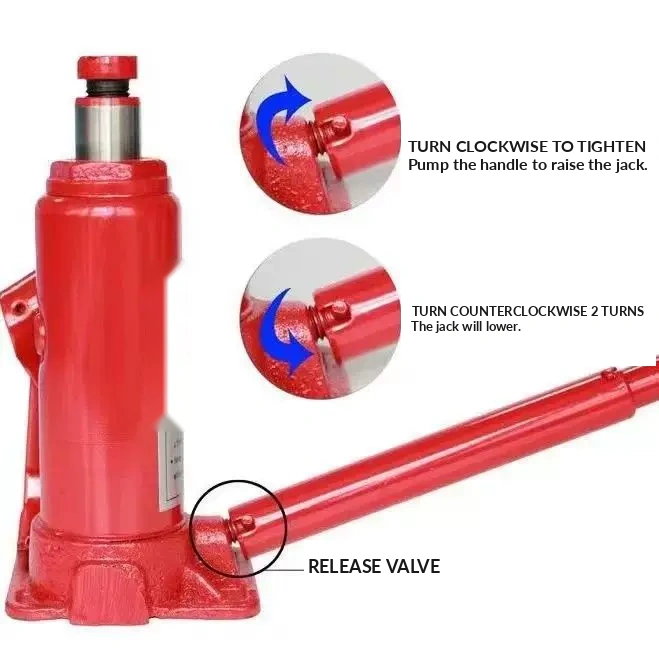

Manual operation
Raise and lower with the jack control
The supplied operating graphic shows a simple two-step bottle-jack procedure.
Raise the jack
Turn the valve clockwise to tighten it, then pump the handle to raise the jack.
Lower the jack
Turn the valve counterclockwise about two turns to release pressure and lower the jack.

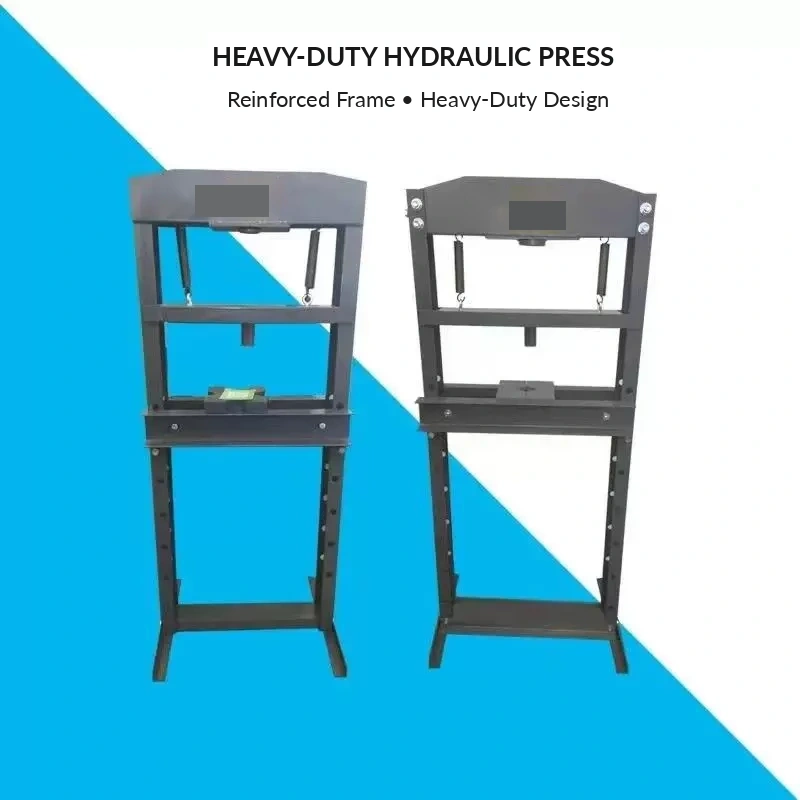

Heavy-duty design
Built around a reinforced press frame
The supplied product presentation explicitly identifies a reinforced frame and heavy-duty design, supported by thickened uprights and a reinforced crossbeam.
Thickened uprights
Reinforced crossbeam
Perforated base

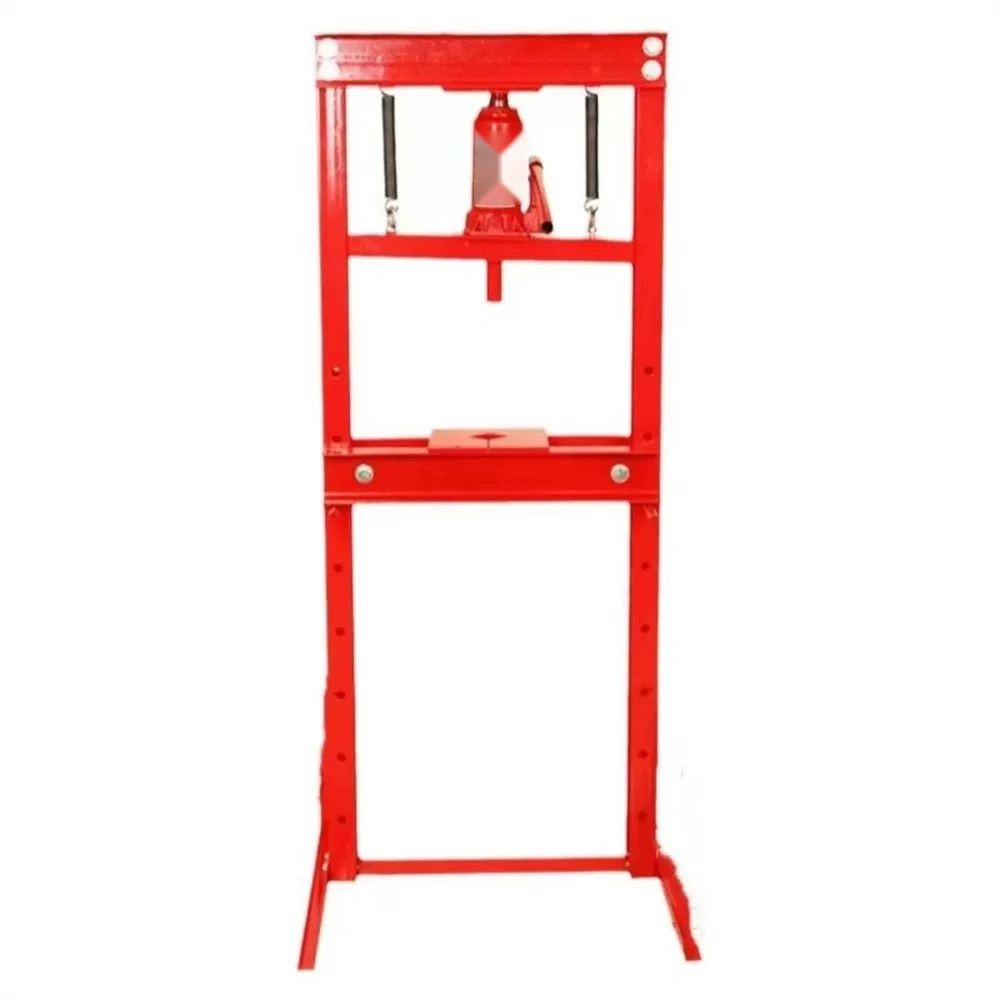

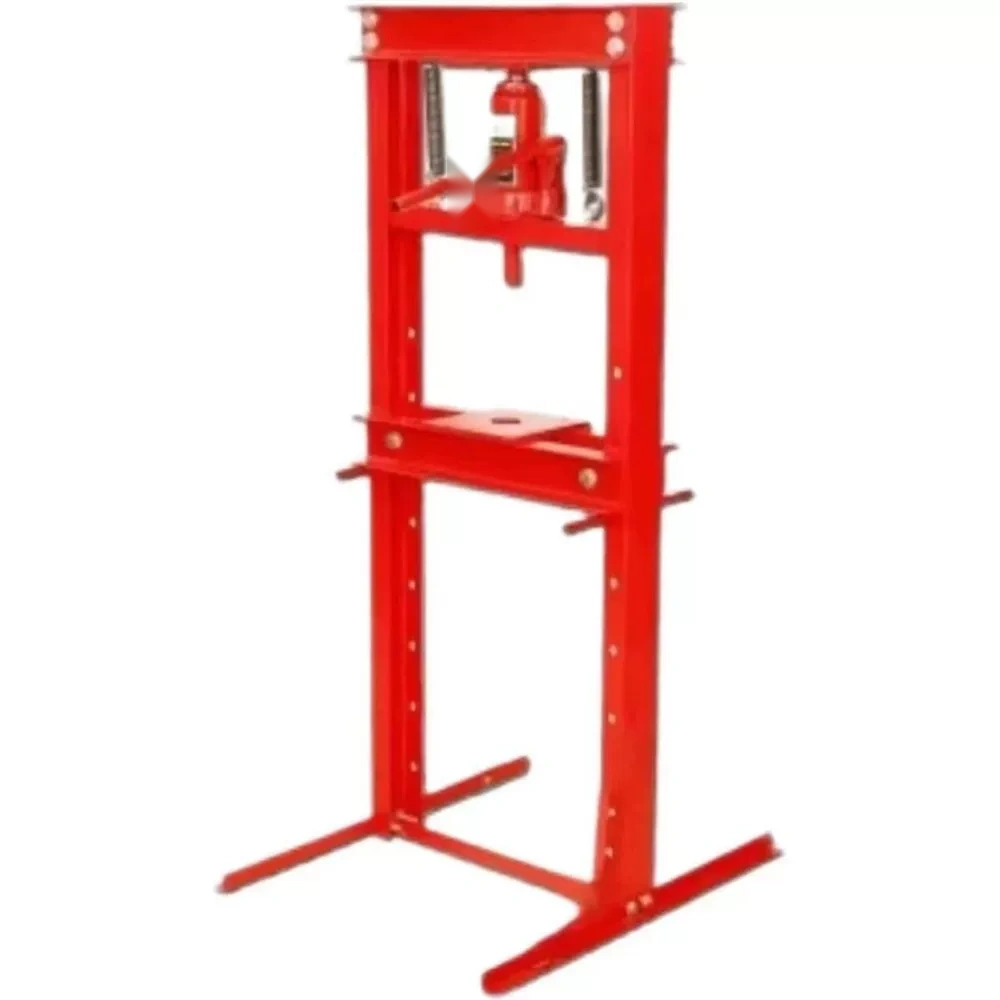

Product views
Construction, controls and frame details
A selection of the supplied English, logo-free product images.
Product FAQ
What the supplied materials establish
How is the jack raised?
Close the release valve by turning it clockwise, then pump the handle to raise the jack.
How is the jack lowered?
Open the release valve by turning it counterclockwise about two turns so the jack can lower.
Can the working position be adjusted?
Yes. The materials show metal pins and multiple pin holes in the uprights for changing the support position.
What dimensions are shown?
The supplied dimension graphic shows 120 cm overall height, 42 cm working inner width, 50 cm frame outer width, 55 cm working height and 13 cm ram stroke.
